Smart battery charger – SBC-LI144

Description

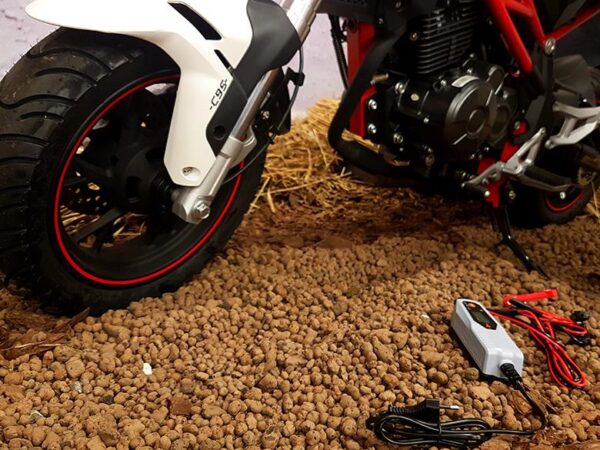

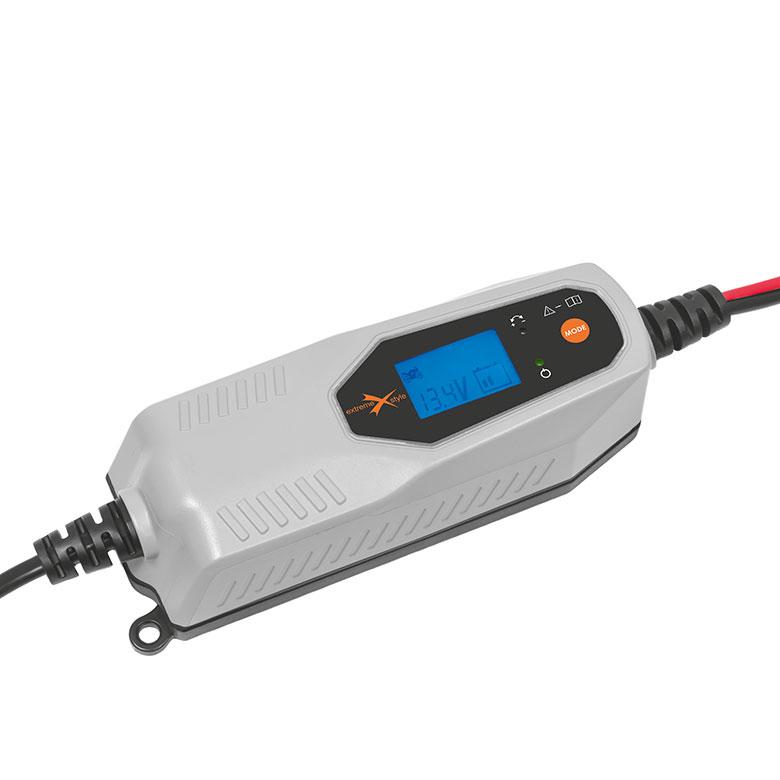

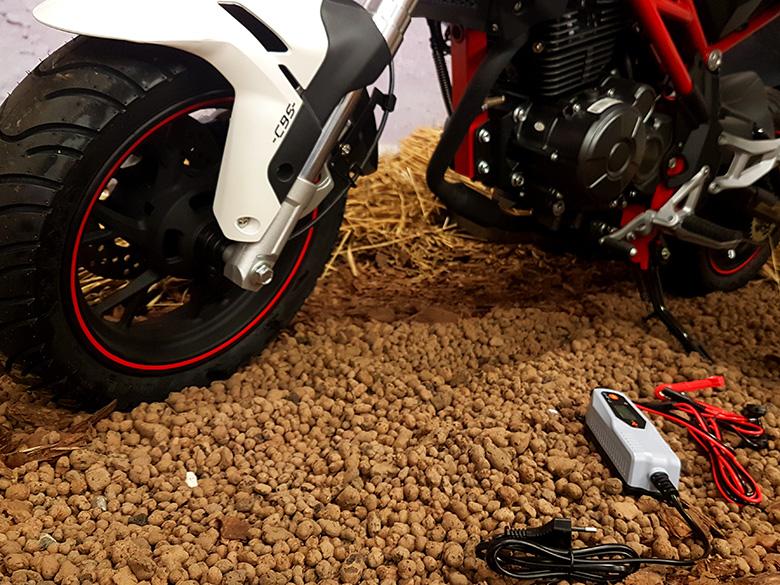

Intelligent charger SBC-LI144 designed for charging 12V lithium batteries located in motorcycles, scooters, snowmobiles, ATV. The charger is fully automatic, controlled by a microprocessor. When fully charged automatically turns off, passing mode voltage monitoring – 100% safe for each battery.

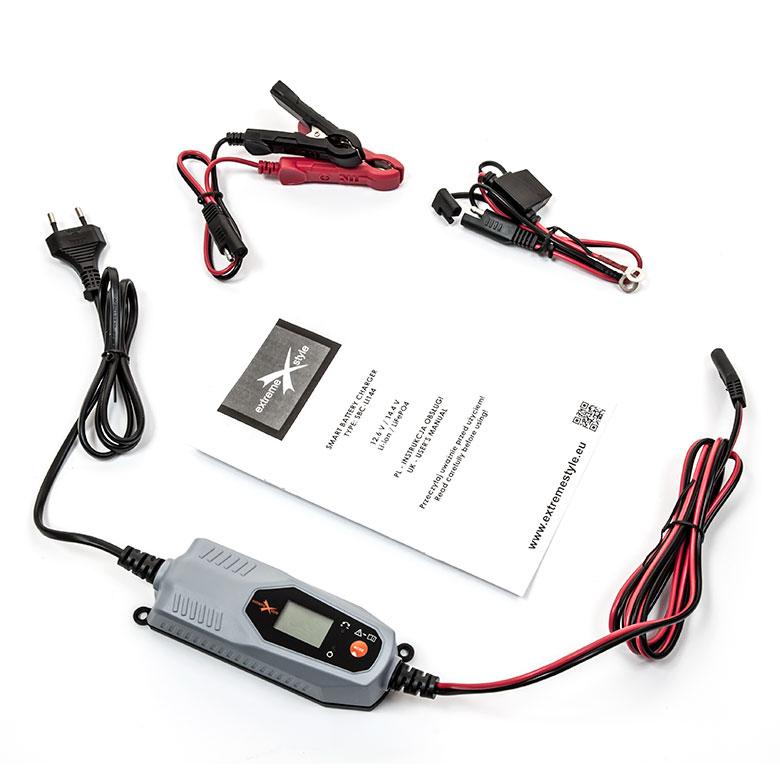

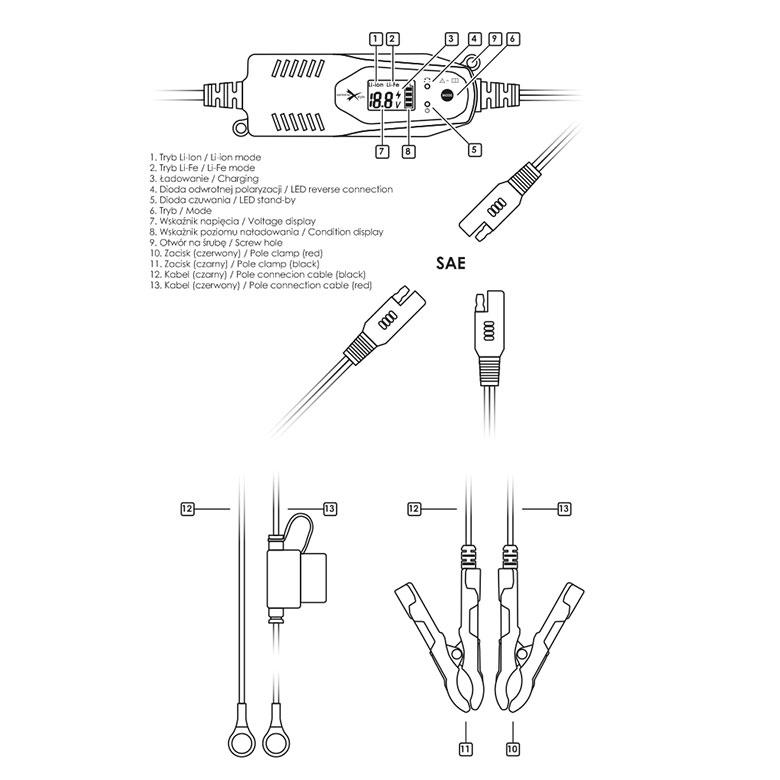

The charger is equipped with a detachable cable with a SAE quick connector and a set of additional connectors (crocodile clips and eye terminals).

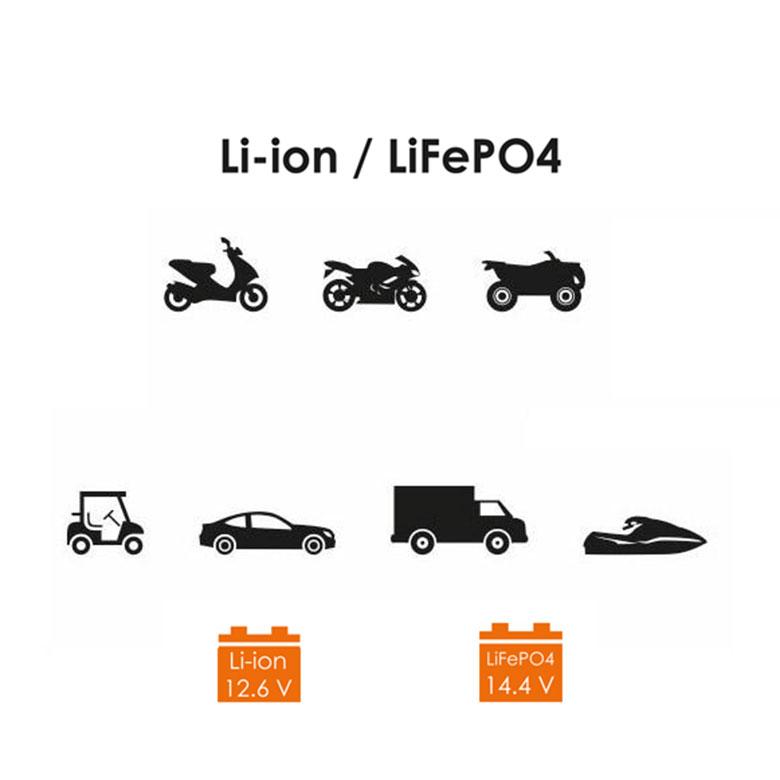

The charger is used to charge Li-ion and LifePO4 batteries.

The eXtreme® brand charger has been equipped with innovative solutions and protections:

automatic and reliable battery charge control – after reaching a certain voltage, or an automatic drop in the charging current,

voltage monitoring after charging – automatic restart of charging in case of voltage drop on the battery,

disconnected cable equipped with SAE fast-connector, allows you to adapt the charger to your needs, standard equipment includes crocodile terminals and eye terminals,

charger equipped with a set of protection against short circuits, against incorrect polarity connection, against overheating, overloading, overloading, etc.

Input – AC 100 – 240 V, 0.4 A, 50 / 60 Hz

Output – DC ≤ 1.5 A, Li-ion ≤ 12.6 V (3 cell X 4.2 V) / LiFePO4 ≤ 14.4 V (4 cell X 3.6 V)

Weight – 381 g

Operating temperature – -10 – 40°C
