Fork Stem Mount – FSM25

Description

Fork Stem Mount – FSM25
eXtremestyle®

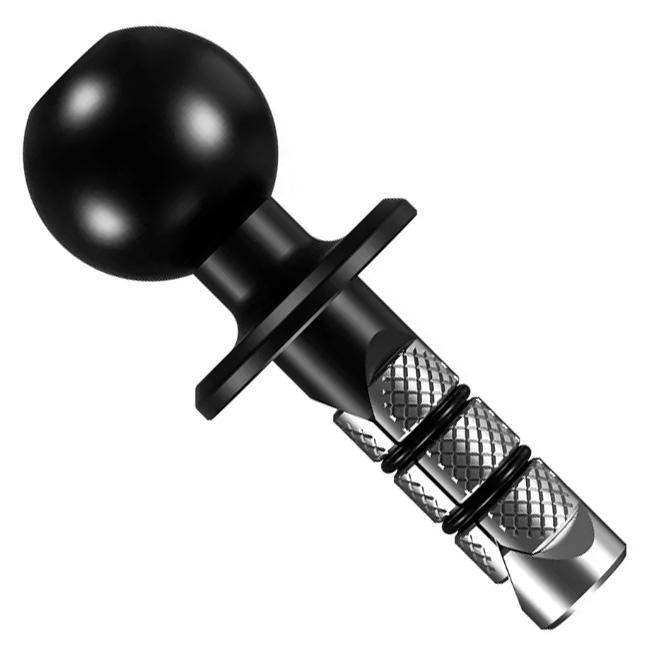

What is the FSM25 adapter?

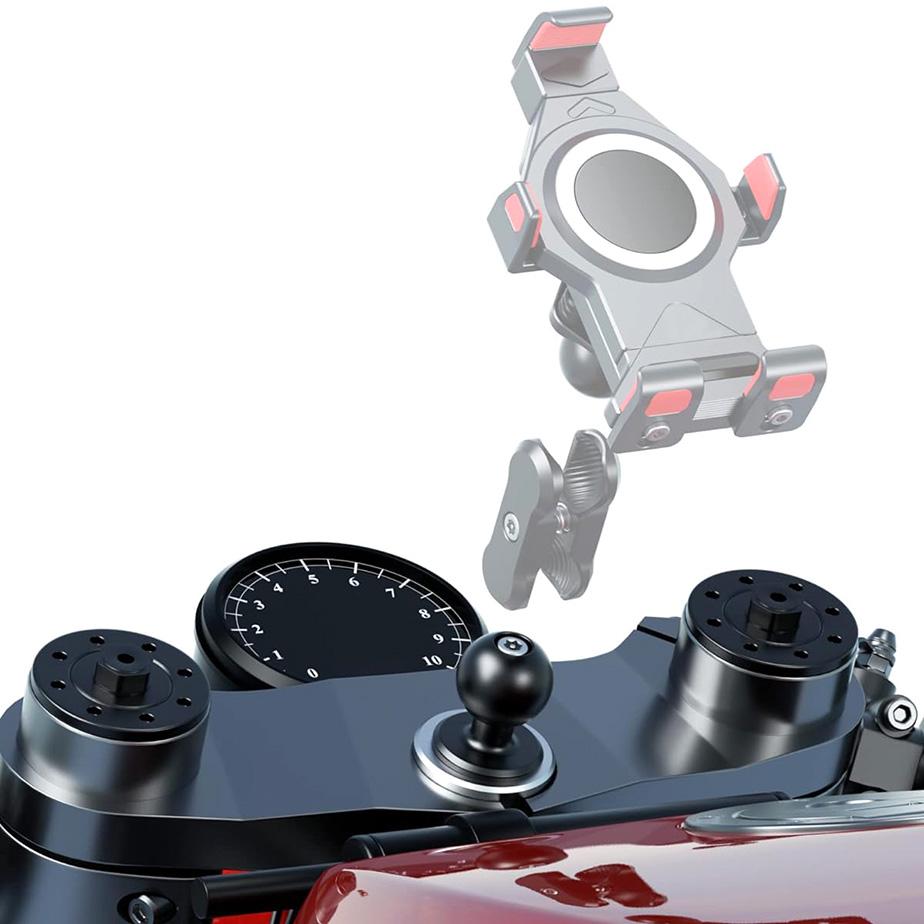

The FSM25 adapter allows you to attach the holder to the frame head. It is a very stable product made of steel and aluminum.

Advantages of using the FSM25 adapter

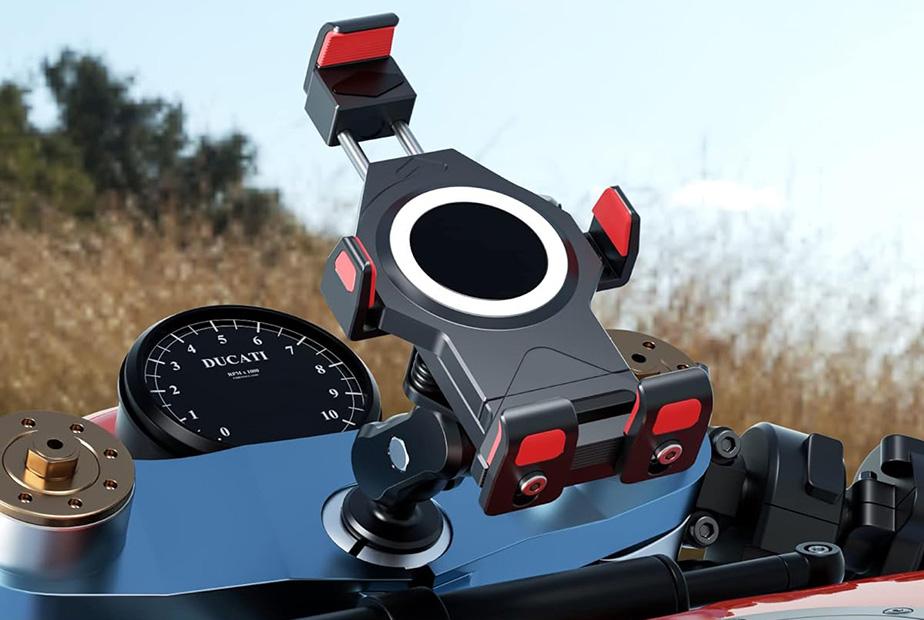

– 360º ball connection allows you to position the phone at the viewing angle and height that suits you
– the handle does not take up space on the handlebar
– stable and durable construction

Compatibility

The adapter is compatible with the following holders from the eXtremestyle offer:


Model
EAN

R8-metal USB QC
5901445620790

R17
5901445625023

R17W
5901445625030

R18
5901445631239

R19
5901445636609

R22
5901445649067

R23-PD-BT
5901445649104

RAM L USB
5901445620806

RAM L-metal USB
5901445621322

RAM XL
5901445620820

RAM XL USB
5901445620813

Assembly method

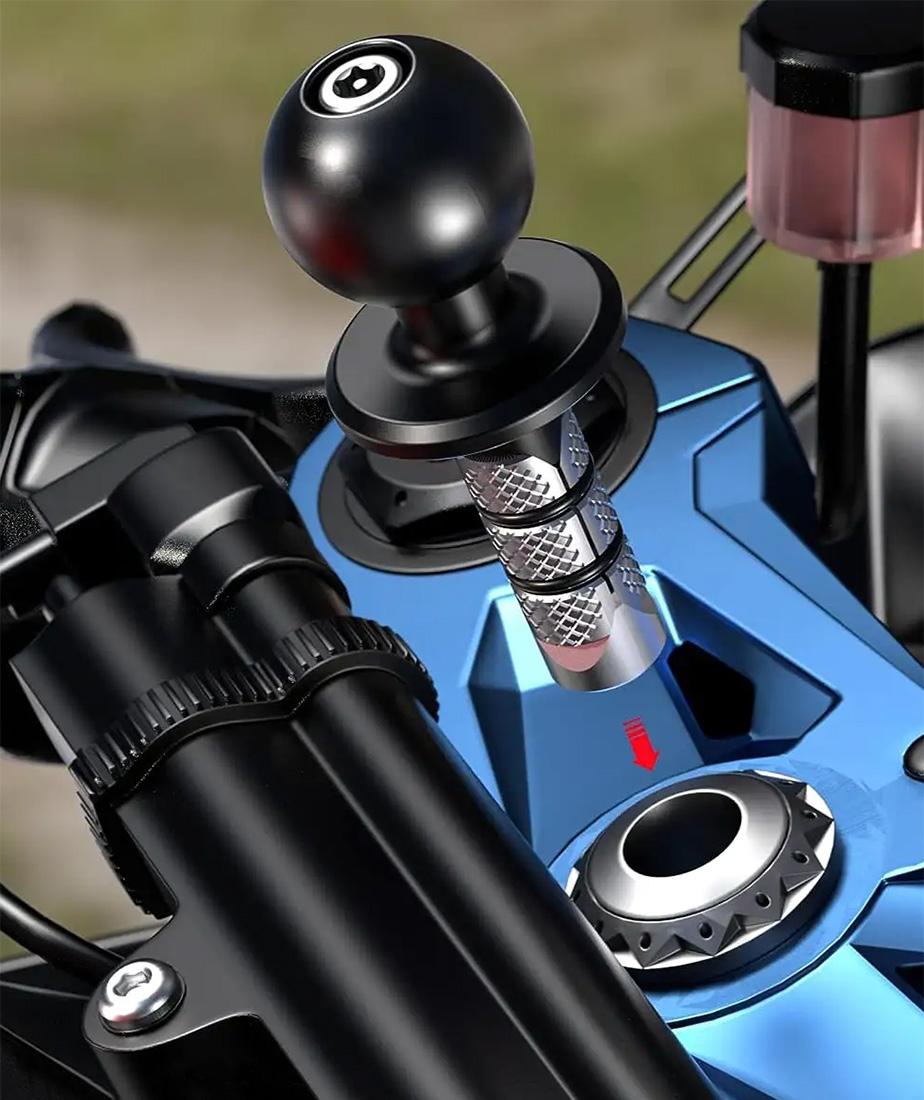

1. Install the expansion sleeve in the head tube
2. Unscrew the expansion sleeve until it locks

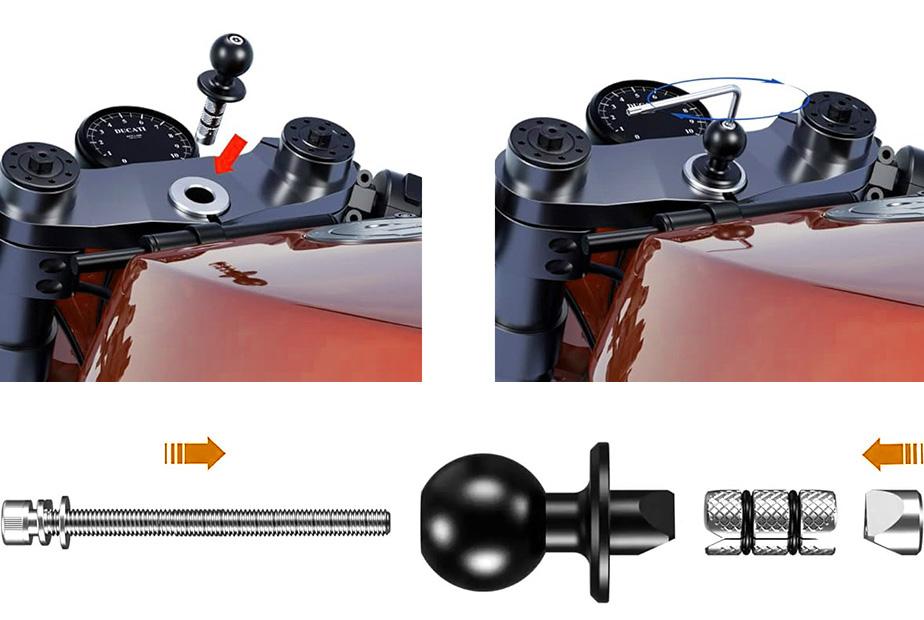

The assembly of individual sleeve elements is shown in the diagram below.

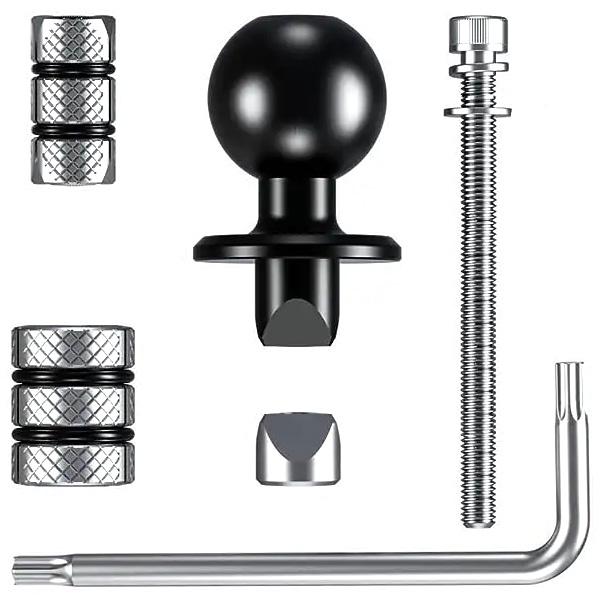

Set elements:

– ball with mounting in the head tube
– expansion sleeves
– steel screw
– wedge
– Allen key

Specification

Ball: 25 mm
Fastening: 12-24 mm
Weight: 82 g
